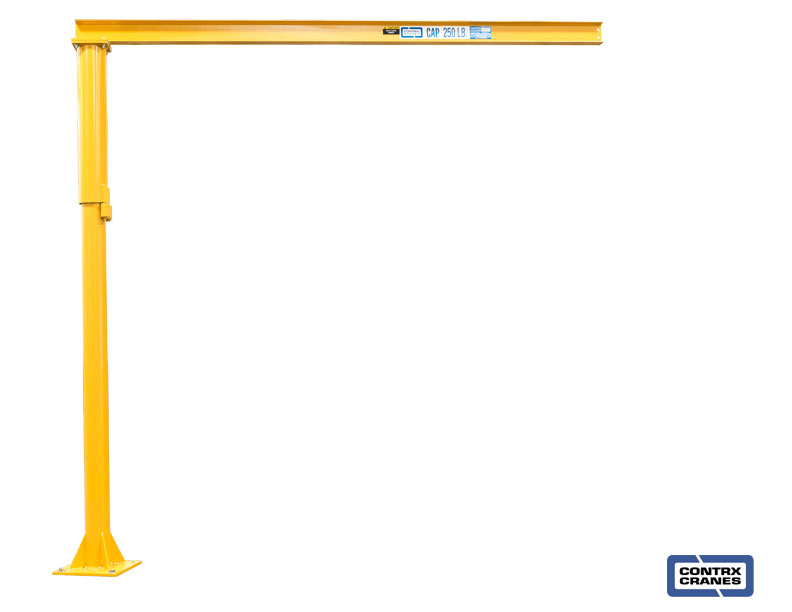

Floor Mounted Jib Crane B Series

Floor Mount Jib – B Series

Jib Cranes – Floor Mounted “B” Series – up to 1 ton

Floor Base Plate Mounted Jib Crane With this type of mounting the jib crane column assembly is bolted to a pre-poured concrete foundation with embedded anchor bolts. This style of jb crane mounting will allow 360° rotation of the boom, with under clearances up to 20′-0″ and standard boom lengths up to 20′-0″

Foundation Mounted Jib Crane This method of mounting bolts the jib crane column to a pre-poured concrete footer. Once the jib crane column is plumb and secured to the footer a second concrete pour finishes the jib crane foundation and embeds the jib crane column in the foundation. The remainder of the jib is the same as the base plate mount jib crane.

Sleeve Mounted Jib Crane A sleeve mounted jib crane is similar to the Foundation Mount. Instead of the jib crane column however, a steel sleeve is anchored to the concrete footer and embedded in the concrete foundation. The jib crane column is then inserted into the sleeve, plumbed, and held in place with a set of split collars that are welded to the column, and the embedded sleeve

B – JIBS: up to 1 ton
Height Under Boom (HUB): B = up to 20’
Beam lengths: up to 16’
Epoxy paint
Galvanized
Stainless steel
Outdoor use
Bolt-type base plate (standard)
Food Grade Applications – FDA Approved
Foundation mount base
Sleeve mount base
Motorized boom rotation
Top-entry electrical collector – 360⁰ Rotation
Wide-flange beam

Please contact Contrx Cranes to order any of the accessories listed. 920-722-0101

Hoists and Trolleys
Tagline kits
Mounting templates
Anchor bolt kits
Motorized rotation

Click any PDF to preview document in a new window:
Medium Duty Floor Mount (B-Jib) Specification Chart (114 KB): Download

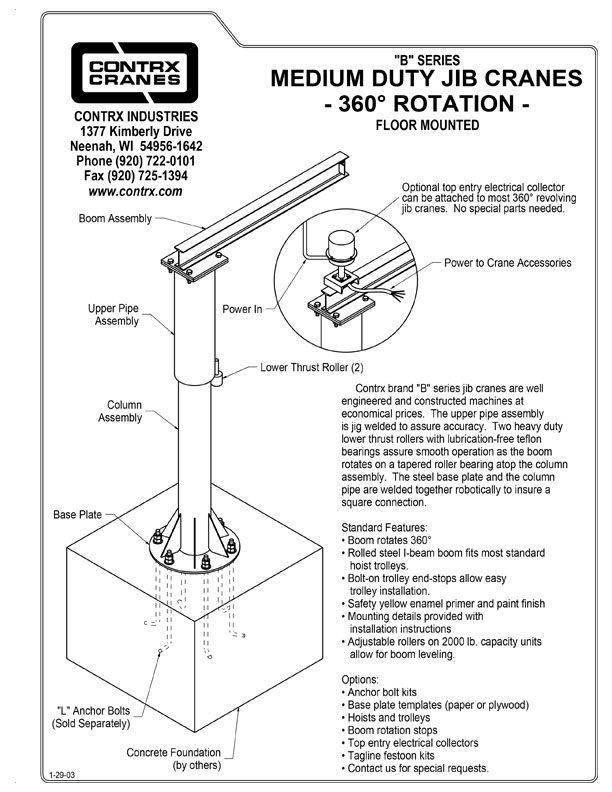

Medium Duty Floor Mount (B-Jib) Assembly Drawing (227 KB): Download
Floor Mount Jib Installation Instructions (67 KB): Download
