Wall-Mounted Jib Cranes – Overbraced Tie-rod

Wall-Mounted Jib Cranes – Overbraced Tie-rod

Contrx Wall-Mounted jib cranes overbraced tie-rod are constructed out of high grade steel components and are designed for trouble free industrial use. The hinges are equipped with self-lubricating Teflon bearings and hardened pins. Contrx jibs are designed for indoor use, and can be custom-modified for most outdoor applications. Contrx Wall Mount cranes are primed and finish in safety yellow enamel. Other colors are available, please contact the factory for details.

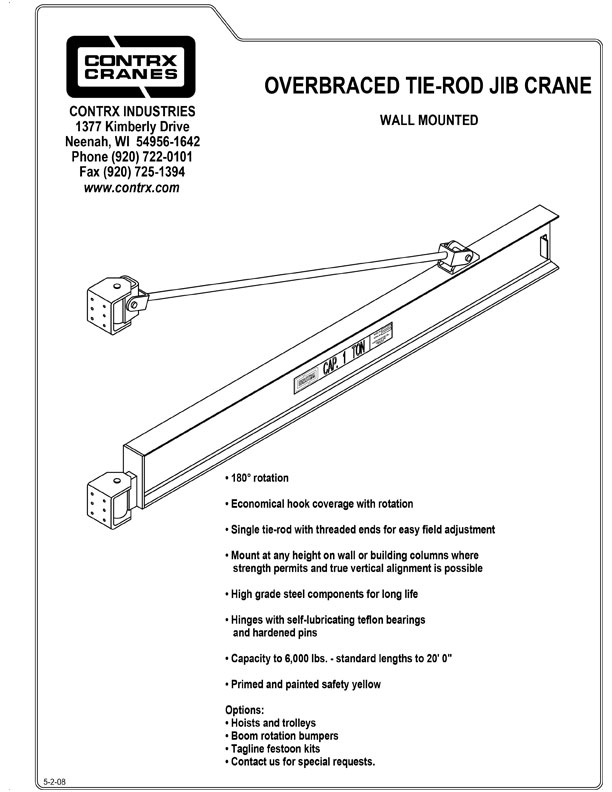

Wall-Mount-Overbraced-Tie-rod-view

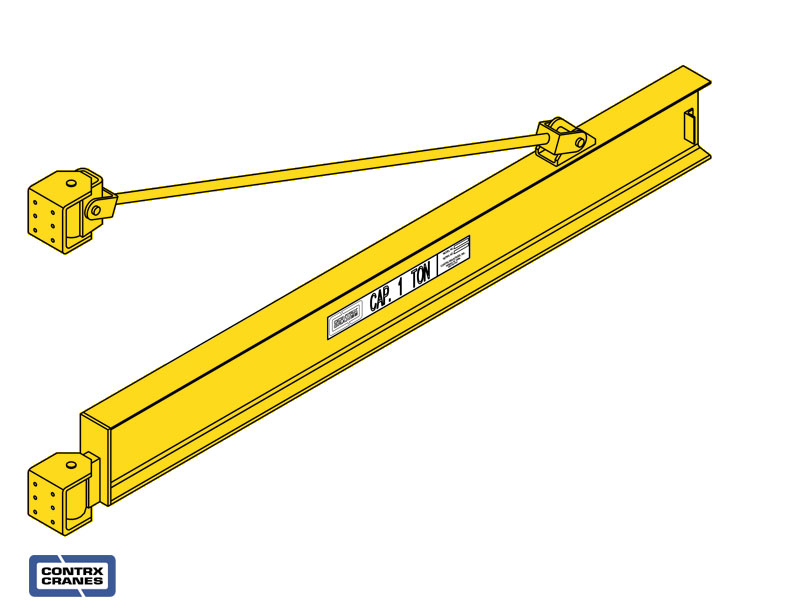

Overbraced Tie Rod Wall Mounted Jib Crane (WMC)
The overbraced tie rod wall mount provides economical hook coverage with 180 degree manual rotation. The tie rod has threaded ends and will allow easy field adjustments. Assembly required at installation.

  • Capacities: 500# to 3 ton
  • Beam lengths: 8’ – 20’ (2’ increments)
  • Epoxy paint
  • Galvanized
  • Stainless steel
  • Food Grade Applications – FDA Approved
  • Boom rotation bumpers

Please contact Contrx Cranes to order any of the accessories listed. 920-722-0101

  • Hoists and Trolleys
  • Hinge kits
  • Tagline festoon kits
  • Motorized rotation

WMC Over Braced Tie Rod All Mount Jib Crane Specifications (114 KB): Download

Wall Mounted Jib Crane Installation Instructions (114 KB): Download
