Pillar Mount Jib Cranes

Pillar Mount Jib Cranes

Pillar Mount Jib Cranes are fastened between floor and ceiling, and rotate on spherical roller bearings for ease of operations. Units are available in configurations as shown below. Please Contact Us for more information regarding your particular application.

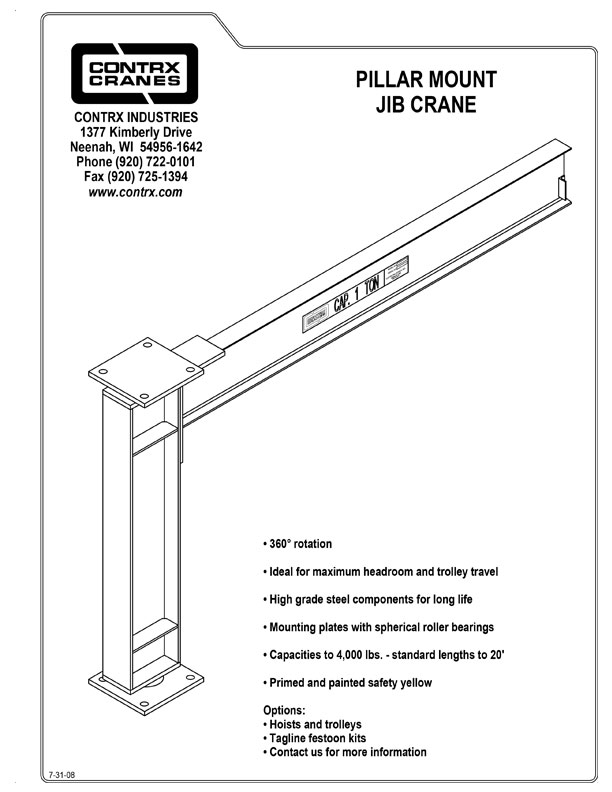

pillar-mount-jib-crane-view

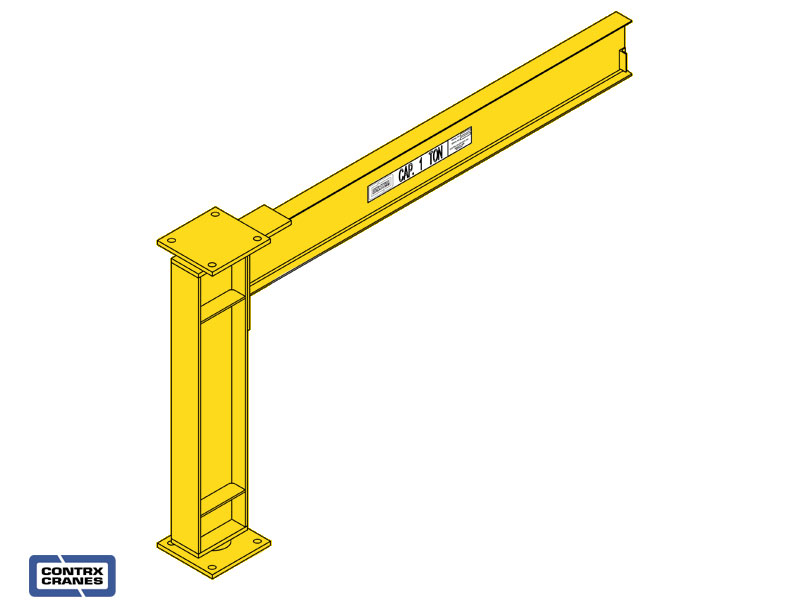

pillar-mount-standard_sml

Standard Boom Configuration

• Designed for maximum headroom and trolley travel
• 360 rotation
• High grade steel components
• Mounting plates with spherical roller bearings

pillar drop boom sml

Drop Boom Configuration

• Designed for maximum headroom and trolley travel
• 360 rotation
• High grade steel components
• Mounting plates with spherical roller bearings

pillar-overbraced-model-sml

Over-Braced Boom Configuration
• Capacities: 500 to 4000 pounds
• Standard beam lengths: 8’ – 20’ (2’ increments)
• Custom beam lengths available
• Knee Brace support
• Over-braced tie-rod
• Epoxy paint
• Galvanized

  • Capacities: 500# to 2 ton
  • Beam lengths: 8’ – 20’ (2’ increments)
  • Mounting plates with spherical roller bearings
  • Epoxy paint
  • Galvanized
  • Stainless steel
  • Boom rotation bumpers

Please contact Contrx Cranes to order any of the accessories listed. 920-722-0101

  • Hoists and Trolleys
  • Tagline festoon kits
  • Coming soon.
