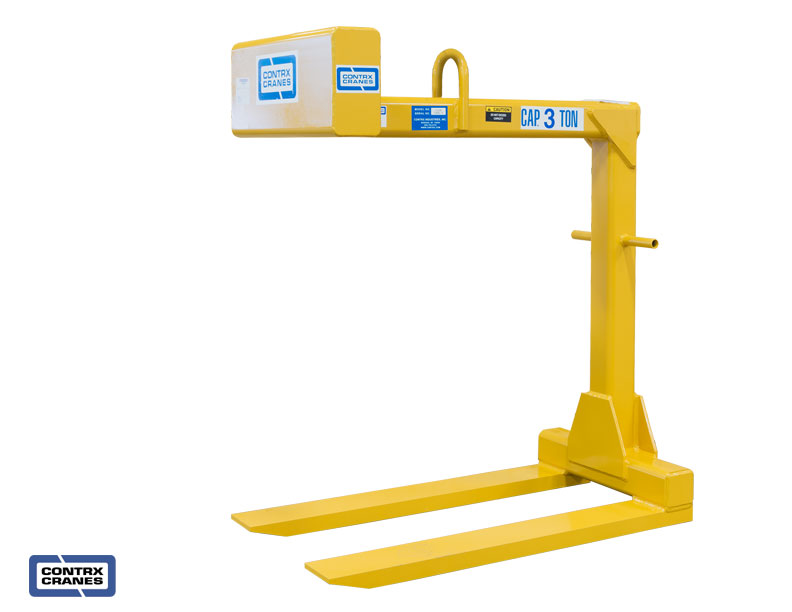

Pallet Lifters

Pallet-Lift
Pallet-Lift-view

• Contrx Pallet lifters are designed to hang level when empty or with proper load.
• Smaller pallets can be lifted as long as ‘center of gravity’ is located under lifting bail.

  • Capacities: 500# to 5 ton
  • Hook sizes
  • Custom sizes
  • Epoxy paint
  • Galvanized
  • Standard Fork lengths; 24 – 30 – 36 – 42 – 48”
  • Custom fork lengths available

Please contact Contrx Cranes to order any of the accessories listed. 920-722-0101

  • Nylon and polyester slings and straps to secure load
  • Rigging

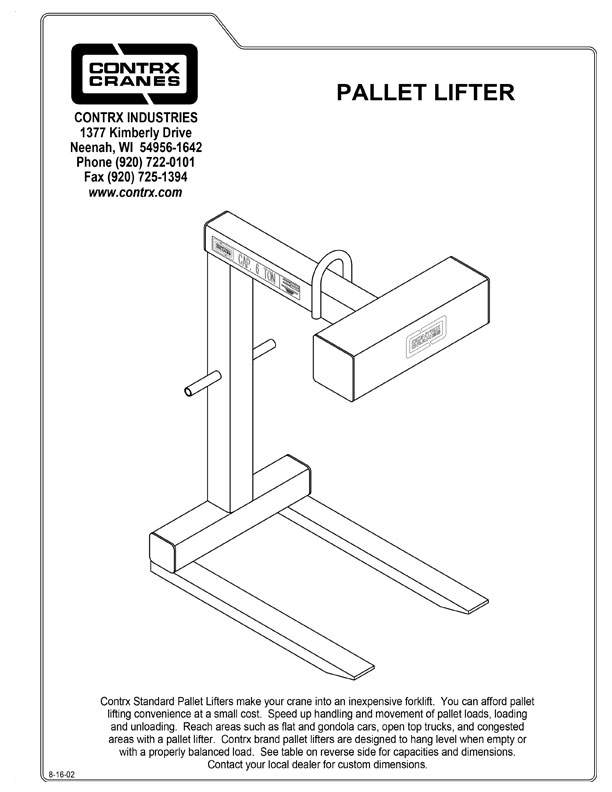

Pallet Lifter data sheet (86 K): Download

Pallet Lifter specs: Download

SINGLE HOOK CAPACITIES
Hook PositionHook Position (in)4000 Pound6000 Pound8000 Pound
A34400060008000
B44400060008000
C54400060008000
D64400060008000
E74400060008000
180400060008000
287-1/2353553026974
395316747506182
4102-1/2286843025551
5110262139315037
6117-1/2241336194610
7125223533534250
8132-1/2208231233942
9140194929233676
